1064 nm
- Single
- 1.5 J
- Double
- 2.0 J
- Genesis
- 3.2 J

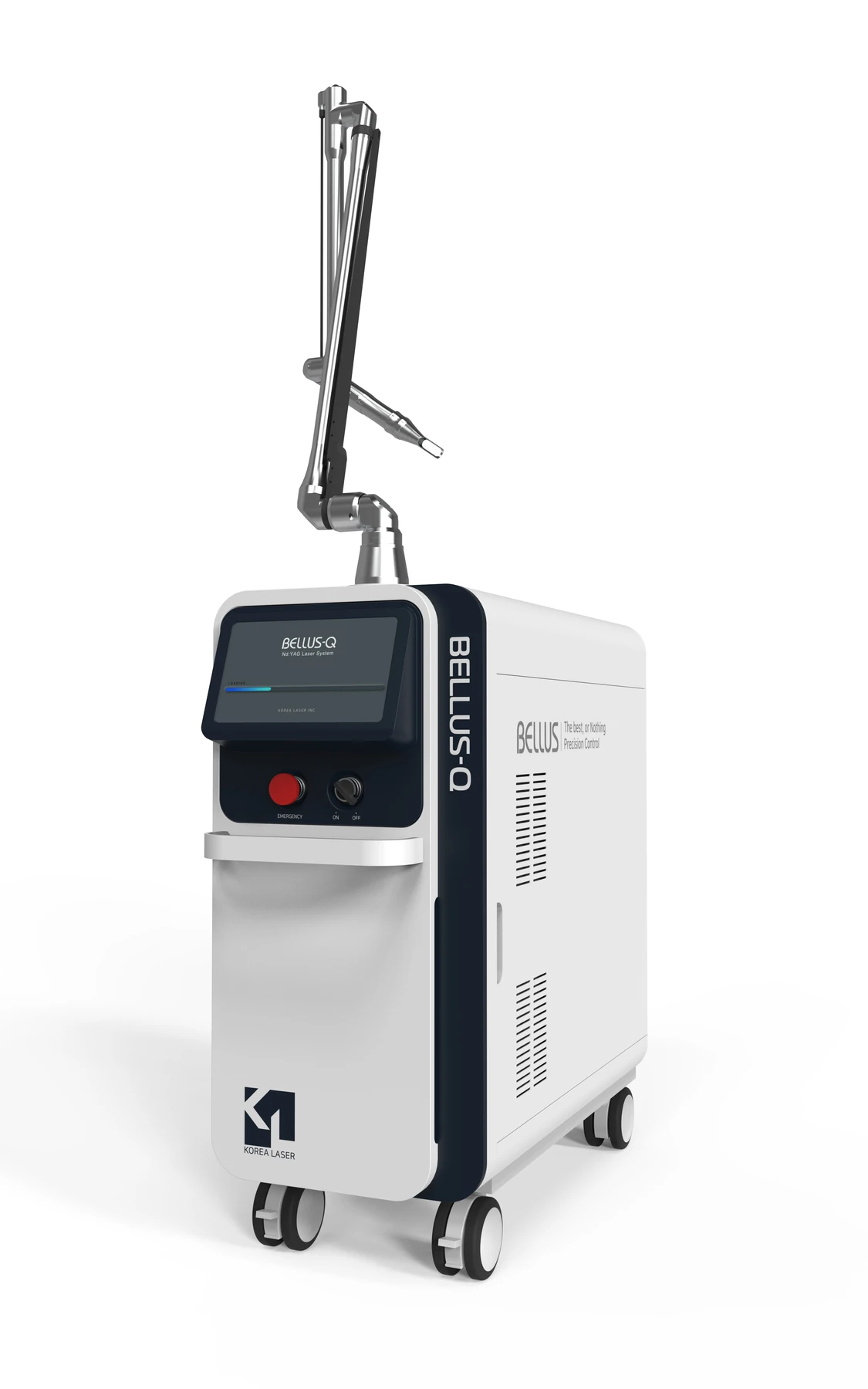

Bellus Q.
Q-Switched Nd:YAG LaserQ-switched energy. Top-hat delivery.
1064 / 532 nm Q-switched Nd:YAG with 5–10 ns pulses, selectable pulse modes and optional wavelength handpieces.
- Wavelengths
- 1064 / 532 nm
- Pulse duration
- 5–10 ns
- Peak power
- 300 MW
- Beam mode
- Top-hat
01 / TECHNOLOGY
A Q-switched foundation.
Bellus Q uses a top-hat beam profile and an articulated arm. The specification table gives a 1–10 Hz repetition range and 5–10 ns pulse duration at 1064 and 532 nm.
- Pulse duration
- 5–10 ns
- Peak power
- 300 MW
02 / TECHNOLOGY
Energy by wavelength and mode.
Pulse-energy settings are defined separately for each wavelength and mode.
532 nm
- Single
- 500 mJ
- Double
- 500 mJ
Optional wavelengths
- 585 nm
- 250 mJ
- 650 nm
- 150 mJ
03 / TECHNOLOGY
A flexible handpiece platform.
Zoom and 1064 nm fractional handpieces support different beam formats. Optional 585 and 650 nm handpieces extend the wavelength choices. An optional motion guide beam follows the selected 2–10 mm spot size.
- Zoom spot specification
- 2–10 mm at 1064 / 532 nm
- Fractional
- 7 × 7 mm² at 1064 nm
- Optional handpieces
- 585 nm / 650 nm
APPLICATION CONTEXT
Applications include
- PTP toning
- Tattoo removal
- Pigmented-lesion workflows
- Skin resurfacing
- Acne-scar and wrinkle-related workflows
THE PLATFORM / IN DETAIL
Specifications & configuration.
SUPPORTED BY INNOMED
Beyond the platform.
From equipment commissioning to product/application training, local technical support and ongoing clinical/product support.
01Equipment commissioning
02Product / application training
03Local technical support
04Ongoing clinical / product support
