MP50 ultra
- Dimensions
- 426 × 144 × 340 mm
- Weight
- 9.5 kg
- Maximum pressure
- 4 barₑff
- Frequency
- 1–17 Hz, depending on pressure
- Optional V-ACTOR HF
- 1–21 Hz

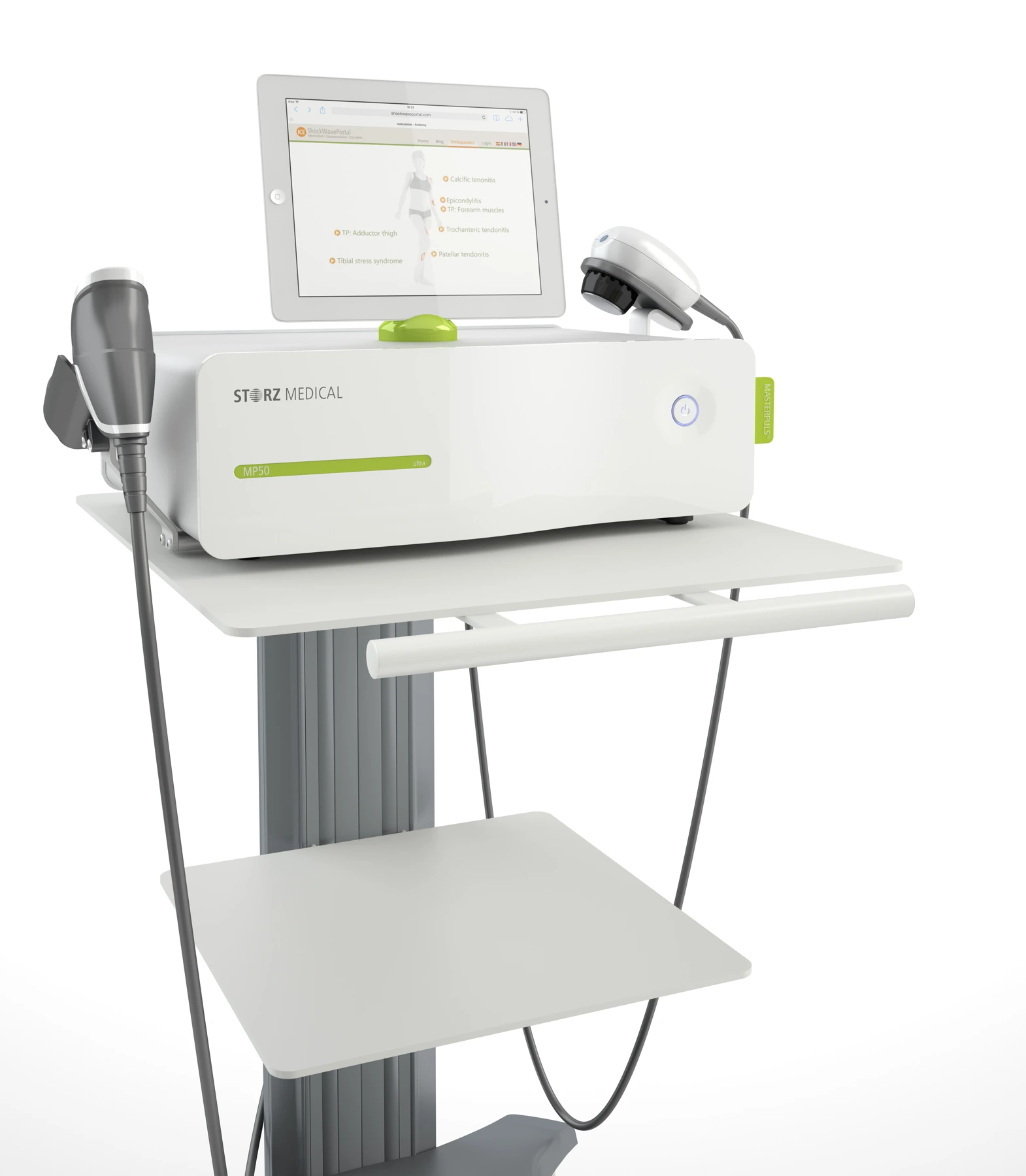

MASTERPULS ultra.
Radial ShockwaveMP50 / MP100 / MP200
One radial platform. Three levels of capability.
MP50, MP100 and MP200 bring radial pressure wave therapy into compact modular systems.
- MP50 / MP100 / MP200
- 3 systems
- Handpiece-led control
- FALCON
- Energy range
- From 0.3 barₑff
- Optional touch screen
- 10-inch
01 / TECHNOLOGY

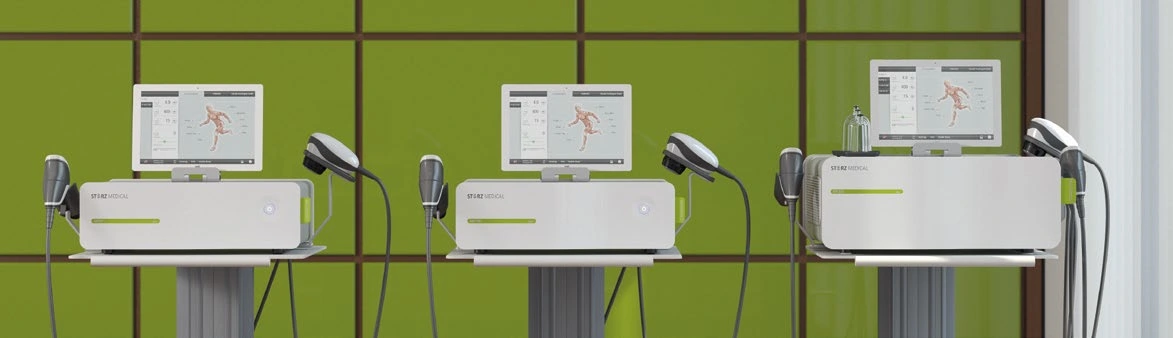

Three systems. One familiar workflow.
Integrated compressors, optional touch screens and a shared handpiece approach connect three levels of radial capability.
MP100 ultra
- Dimensions
- 426 × 144 × 340 mm
- Weight
- 10.5 kg
- Maximum pressure
- 5 barₑff
- Frequency
- 1–21 Hz, depending on pressure
- Skin Touch
- Included
- Optional V-ACTOR HF
- 1–50 Hz
MP200 ultra
- Dimensions
- 466 × 187 × 454 mm
- Weight
- 23 kg
- Maximum pressure
- 5 barₑff
- Frequency
- 1–21 Hz
- Skin Touch
- Included
- VACU-ACTOR
- Included
- Optional V-ACTOR HF
- 1–50 Hz
02 / TECHNOLOGY
FALCON at the centre.
Control elements are integrated in the FALCON display, keeping energy selection and system operation at the handpiece.
- Integrated display controls
- FALCON
- Energy range
- From 0.3 barₑff
03 / TECHNOLOGY
Build the modality mix.
Add optional V-ACTOR HF to the radial platform. MP200 adds VACU-ACTOR vacuum therapy with four VACU-Cup sizes.
- MP50 / MP100 / MP200
- Radial
- Optional across the range
- V-ACTOR HF
- MP200 only
- VACU-ACTOR
- VACU-Cup sizes
- 25 / 33 / 47 / 62 mm
APPLICATION CONTEXT
Applications include
- Achillodynia
- Plantar fasciitis
- Tibial stress syndrome
- Patellar tendinitis
- Calcific tendinitis
- Epicondylitis
- Trigger points
- Fascia-focused workflows
THE PLATFORM / IN DETAIL
Specifications & configuration.
SUPPORTED BY INNOMED
Beyond the platform.
From equipment commissioning to product/application training, local technical support and ongoing clinical/product support.
01Equipment commissioning
02Product / application training
03Local technical support
04Ongoing clinical / product support
