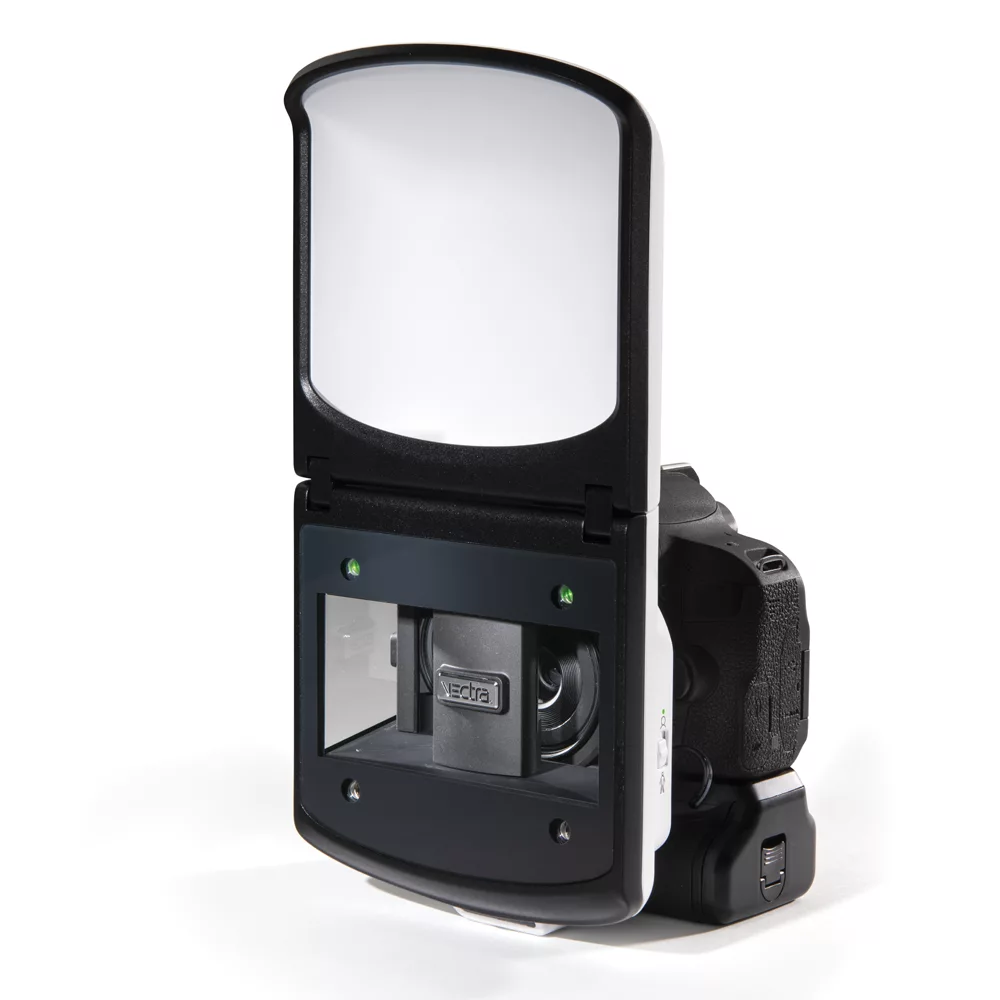

VECTRA H2

The 3D imaging solution for face and body

The 3D imaging solution for face and body

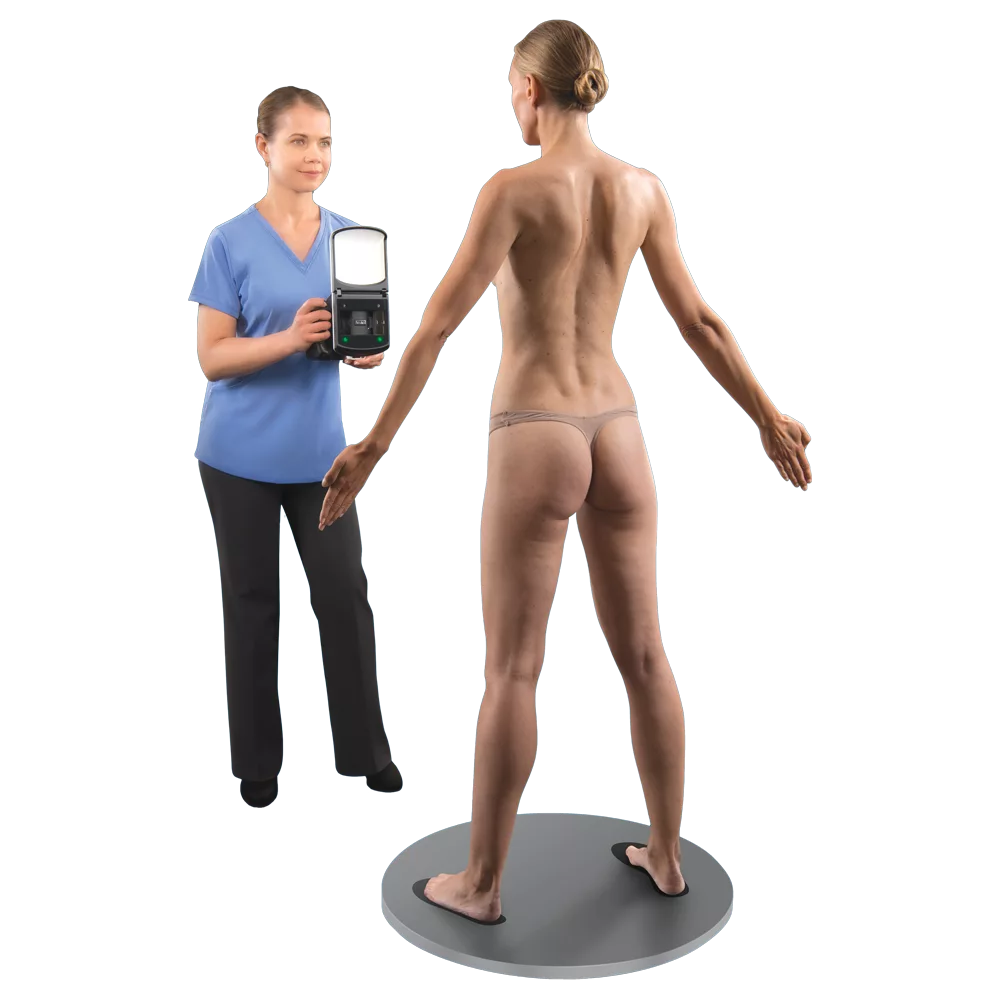

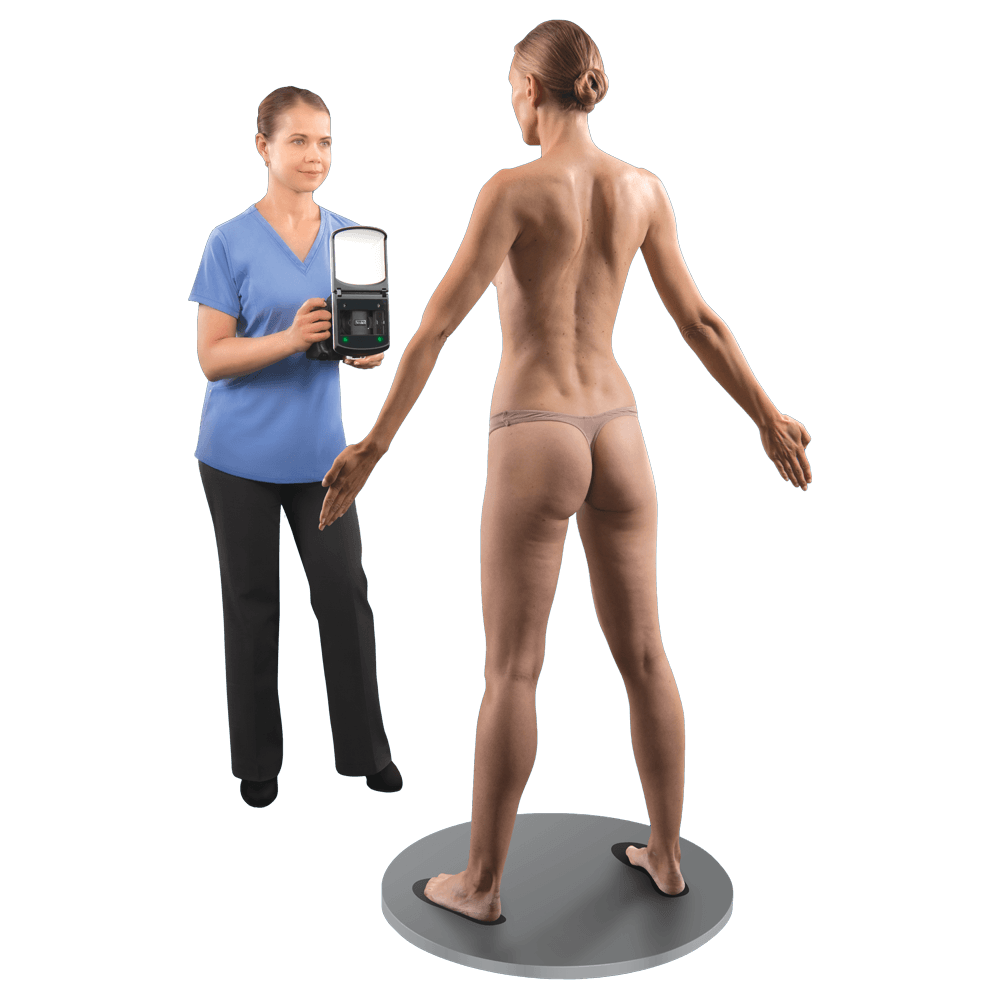

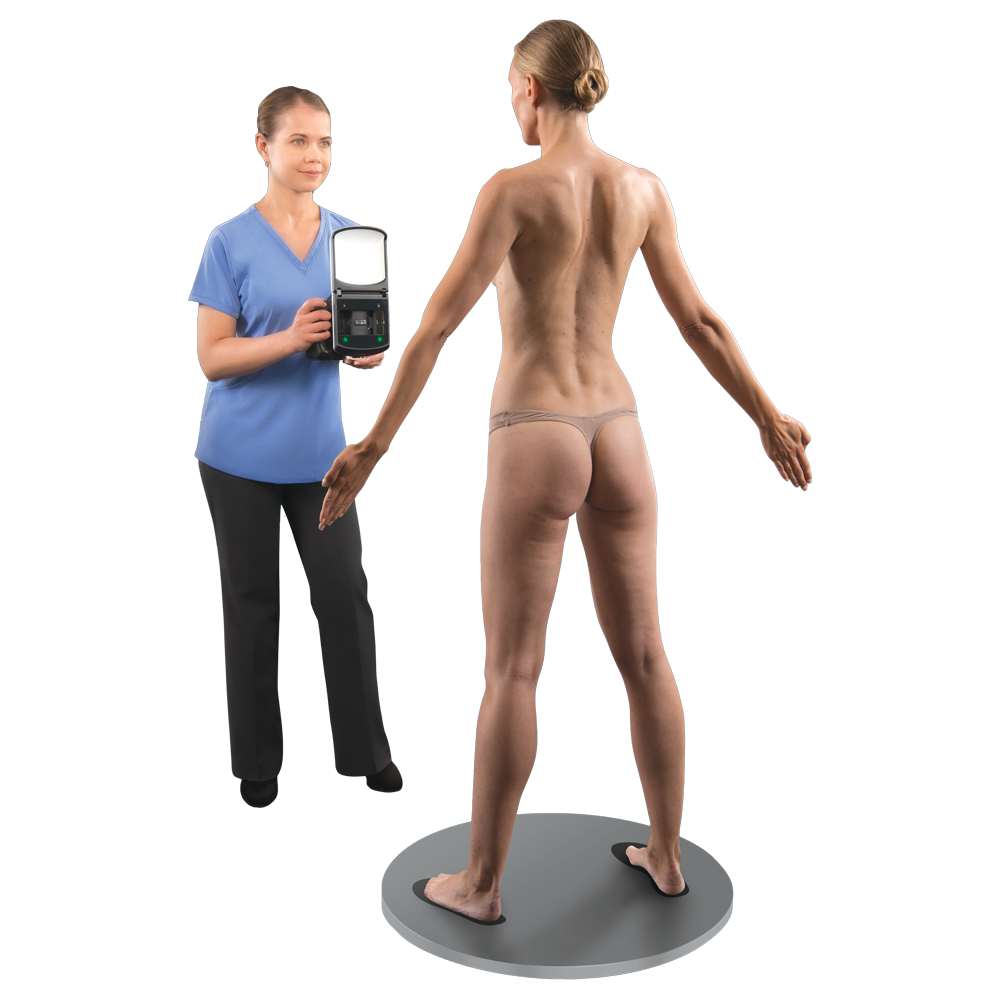

• Portable, lightweight, easy to use



• Innovative flash provides raked lighting for optimal viewing of topography and contours



• High resolution images and industry-leading assessment tools provide the most realistic evaluations and simulations



• Clinical + Studio quality 3D images



• Two unique sets of ranging lights — one for face and one for body — ensure optimal capture distance and resolution



• Unrivaled assessment and consultation software

Price

Login to view prices

With its 3D assessment and simulation tools, Face Sculptor® and Breast Sculptor® make it easy to communicate both surgical and non-surgical procedures — to sculpt the dream.

• Informative assessment tools to educate patients about their options and set appropriate expectations.

• Automated Markerless Tracking provides dynamic assessment of skin surface changes. Skin surfaces are automatically aligned, tracked and mapped. Vector arrows provide a precise indication of the direction and magnitude of skin movement, which is ideal for encouraging future treatments. Physician review of outcomes helps refine treatment techniques.

• Intuitive simulation tools help you achieve realistic 3D results from day one.

Specification

Capture system specifications
• Capture Volume
– Face capture: 320mm (H) x 180mm (W) x 200mm (D)
– Body capture: 700mm (H) x 410mm (W) x 400mm (D)
• 2.0 milliseconds capture time
• Stereophotogrammetry technology
• 3D Resolution (triangle edge length)
– Face capture: 1.2mm
– Body capture: 3.5mm
• Multiple image stitching capability
• On-board modular, intelligent flash unit
• Dual Ranging lights for easy patient positioning (Face and Body)
• SD Memory Card
• (4) Batteries and (2) chargers
• USB Cable
• Soft carrying case
• Computer (optional)
• Printer (optional)
