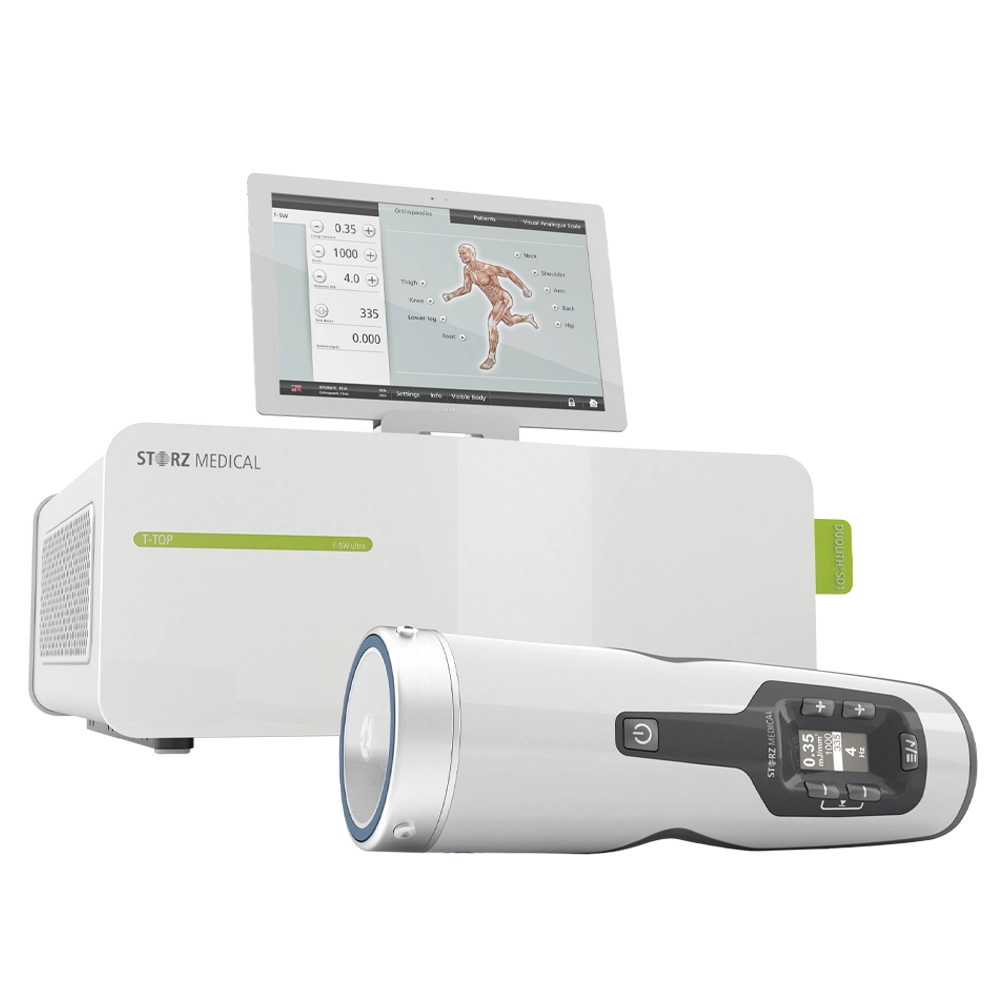

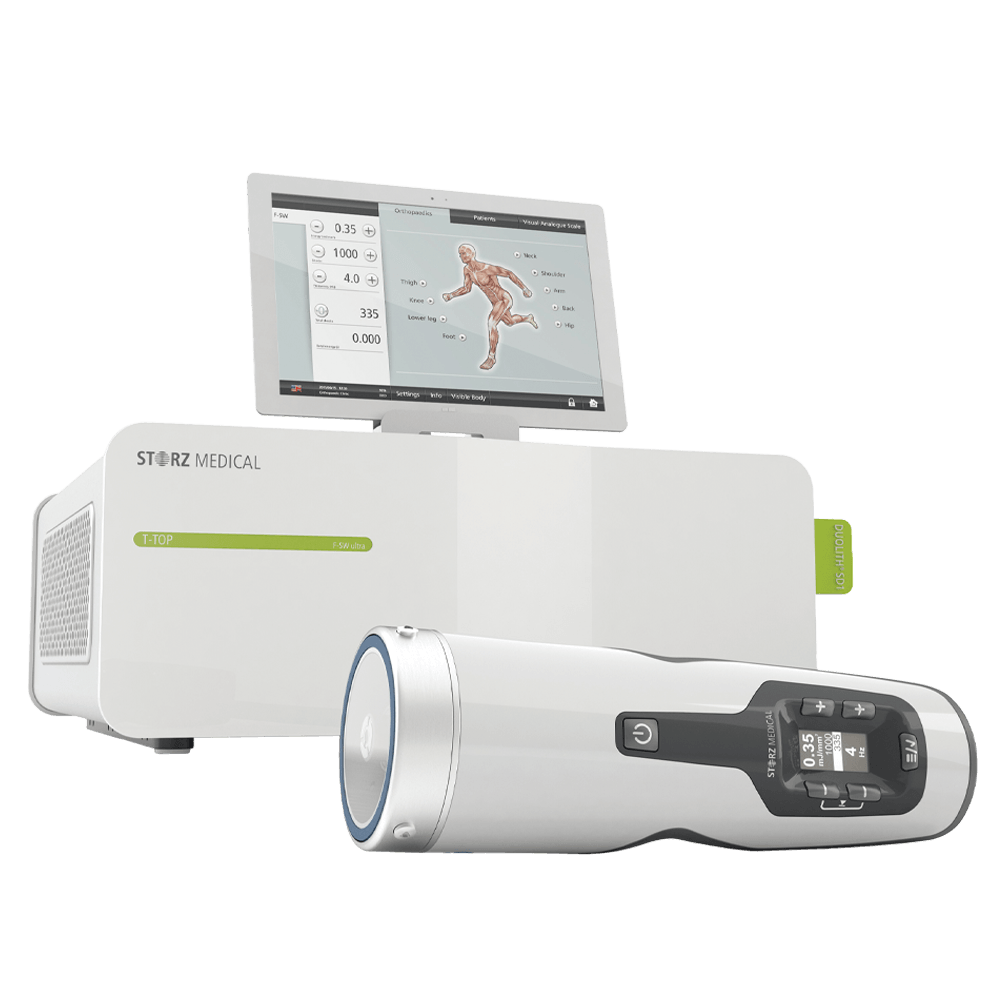

Duolith T-Top FSW »ultra«

The New Focused Shock Wave Generation

High-quality workmanship and optimal ergonomics mark the design of the new focused shock wave generation with the »SEPIA« handpiece. The special flexibility of the handpiece cable supports non-tiring and, thus, easier treatment always directly at the patient – an important factor in the day-to-day work.

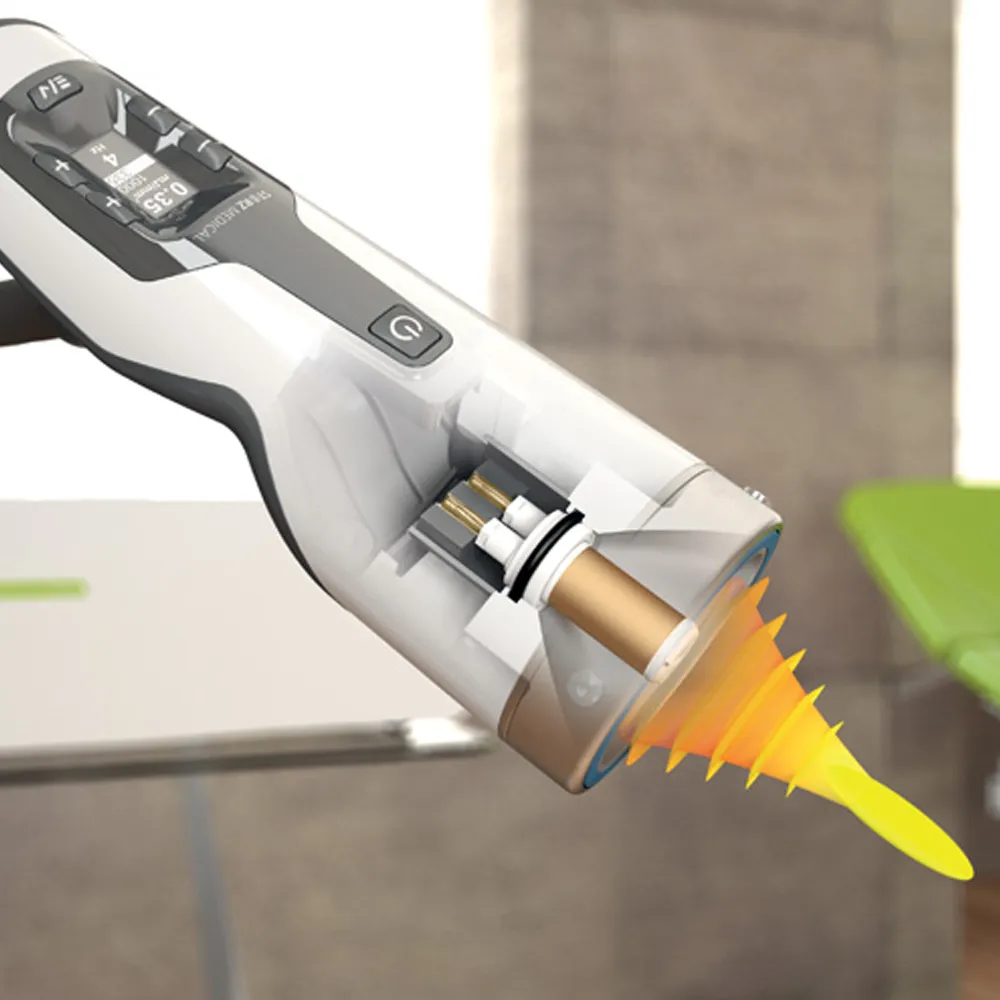

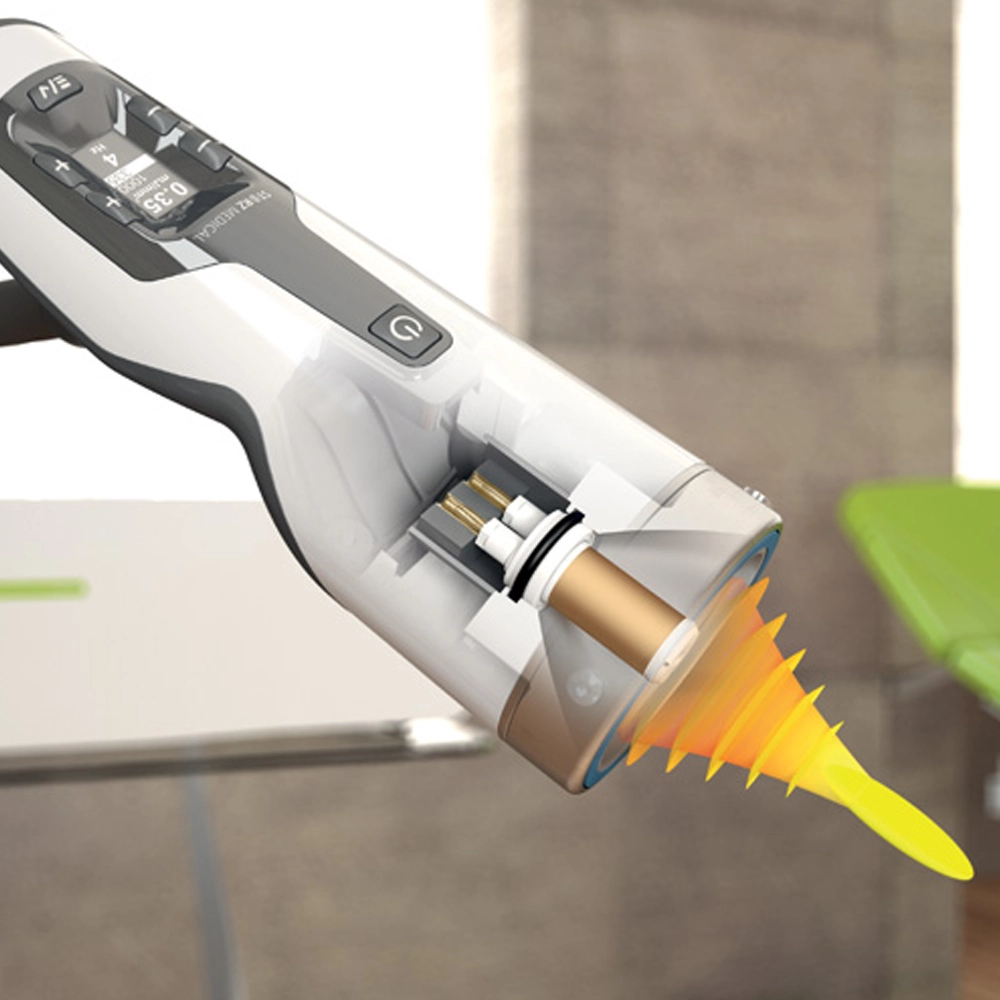

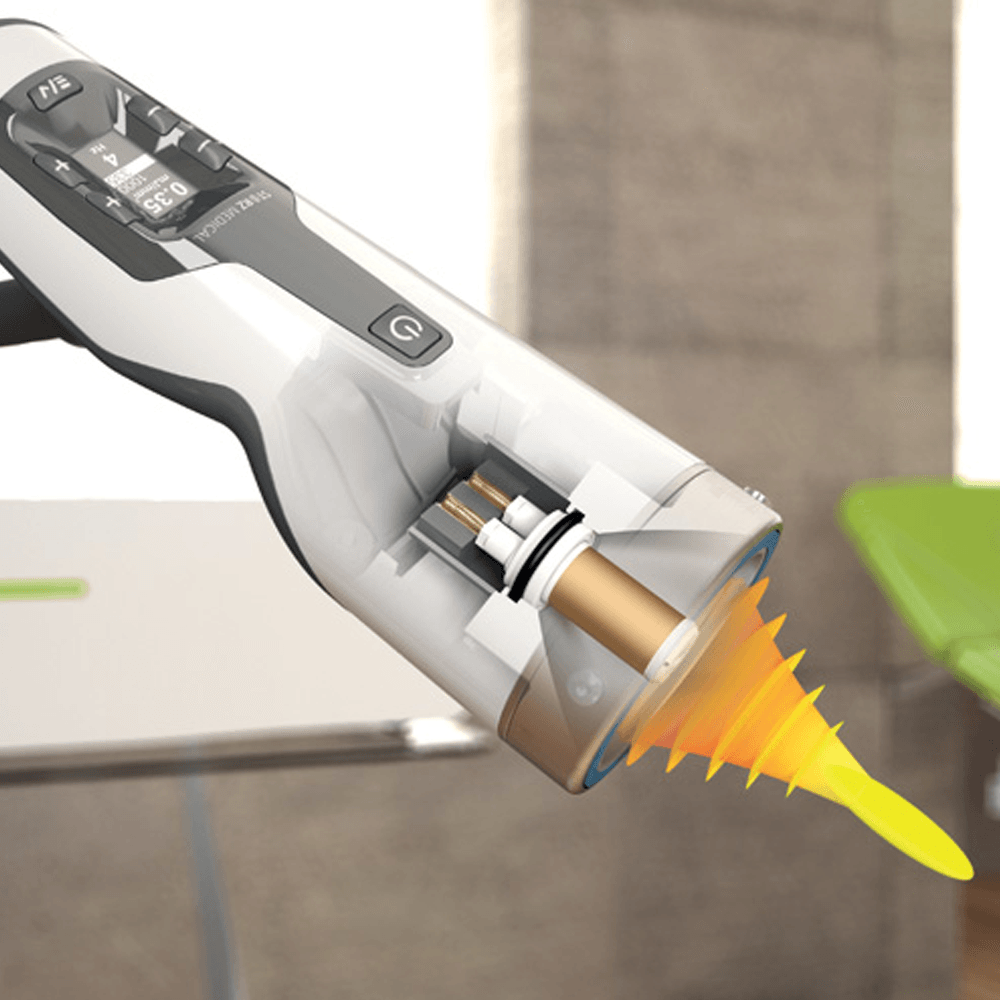

The »SEPIA« handpiece renders the treatment with focused shock waves easy and efficient. All the important control elements have been integrated into the handpiece. Frequency and energy level can be adjusted directly at the handpiece. Pre-set treatment parameters save time and ensure undisturbed working.

An advantage for users: The »SEPIA« handpiece is compatible with all DUOLITH® SD1 »ultra« systems available. Users benefit from reduced revision costs thanks to the easy change of the coil.

• Effective and non-tiring treatment directly at the patient

• All control elements integrated into the handpiece

• Reduced revision costs thanks to easy change of coil

• Focal zone depth: 0 – 65 mm

• Therapeutic effectiveness: up to 125 mm penetration depth

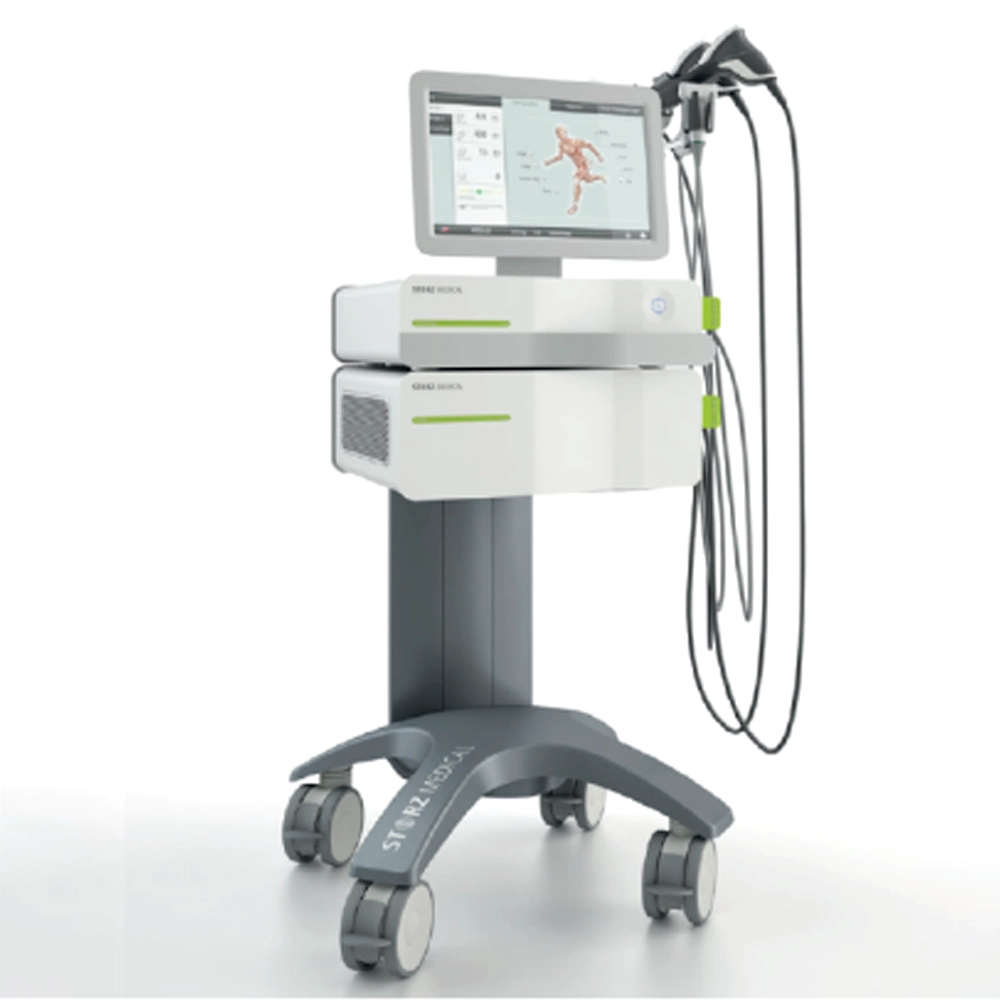

• Upgradable to DUOLITH® SD1 TOWER »ultra« by modular extensions

• Exclusive online access to ICE shock wave information portal for knowledge enhancement


General data
• Dimensions without touch screen (B x H x D): 466 x 187 x 454 mm
• Weight: 24.0 kg
• 10“ touch screen (optional)
• Available in green, blue, orange and black

Focused shock wave
• Standard energy range: 0.01 – 0.55 mJ/mm²
• Extended energy range (optional): 0.03 – 1.24 mJ/mm²
• Focal zone depth: 0 – 65 mm
• Therapeutic effectiveness: up to 125 mm penetration depth


Calcific tendinitis
Plantar fasciitis
Patellar tendinitis
Tibial stress syndrome
Trigger points: periarticular shoulder pain
