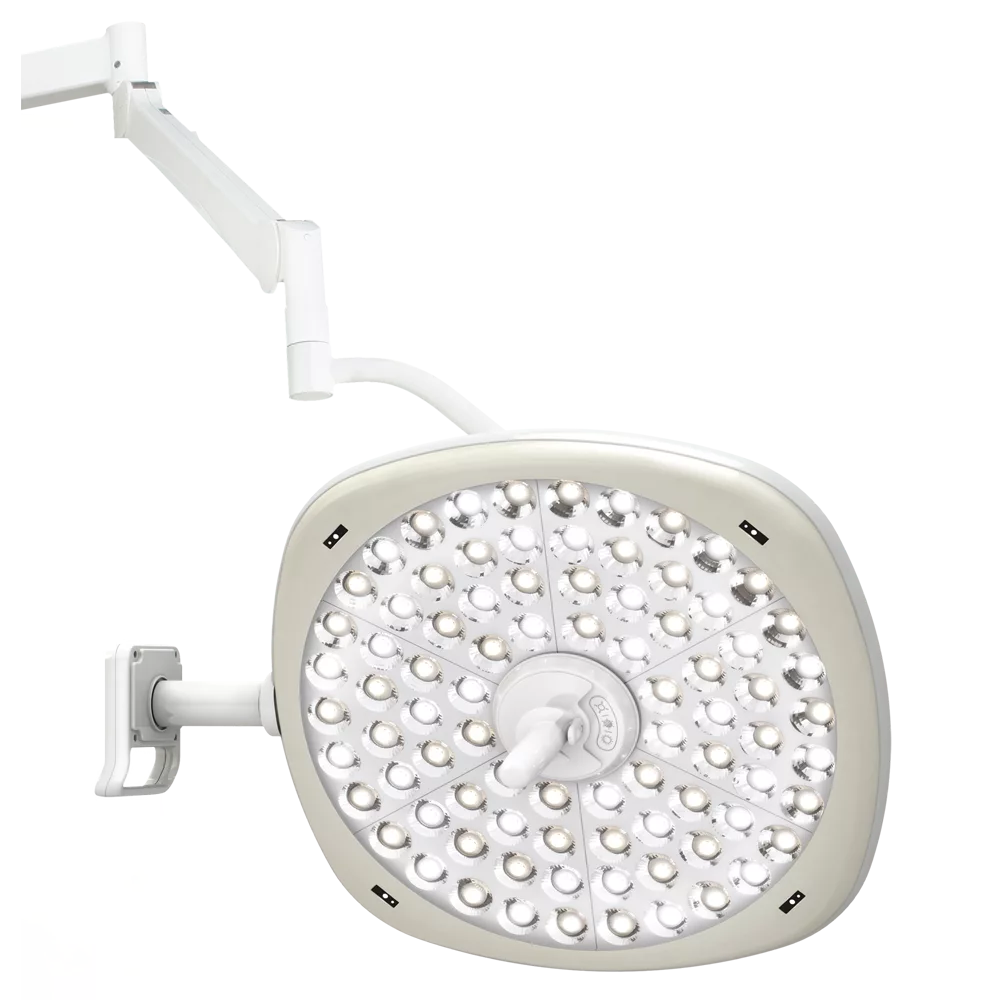

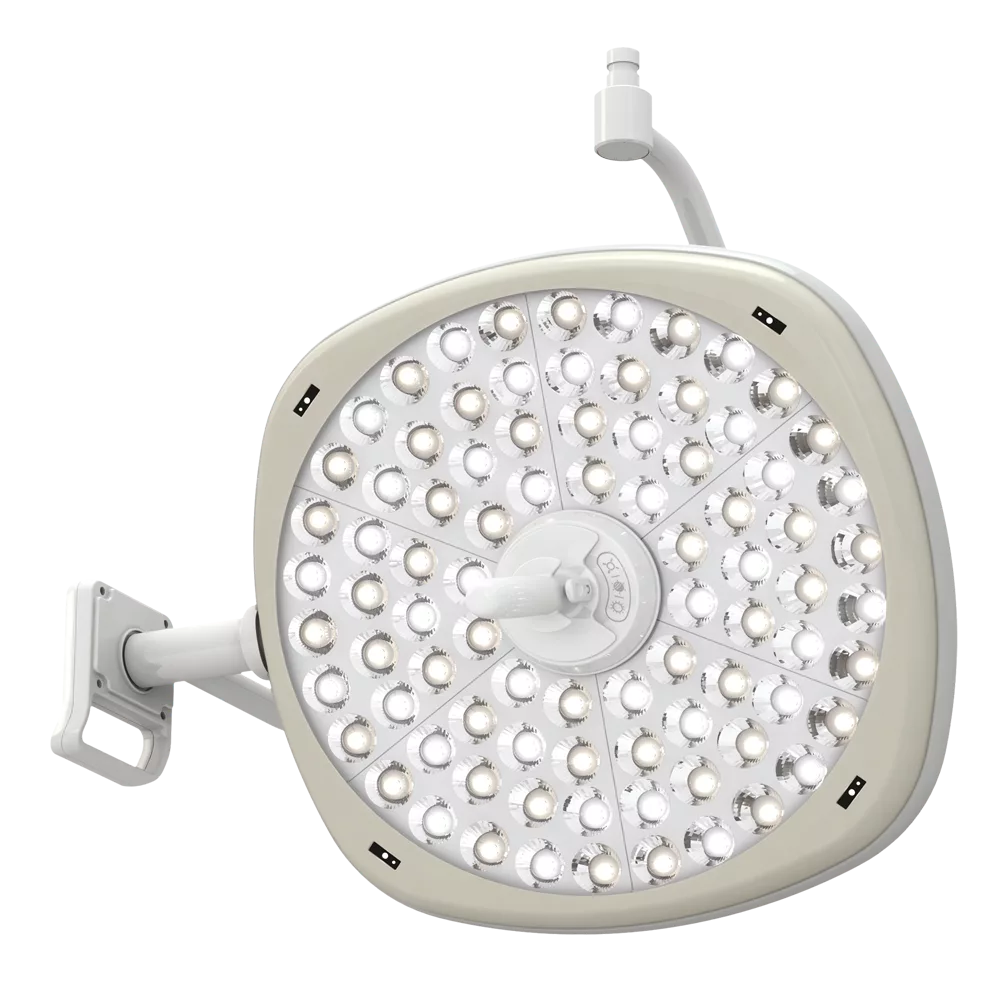

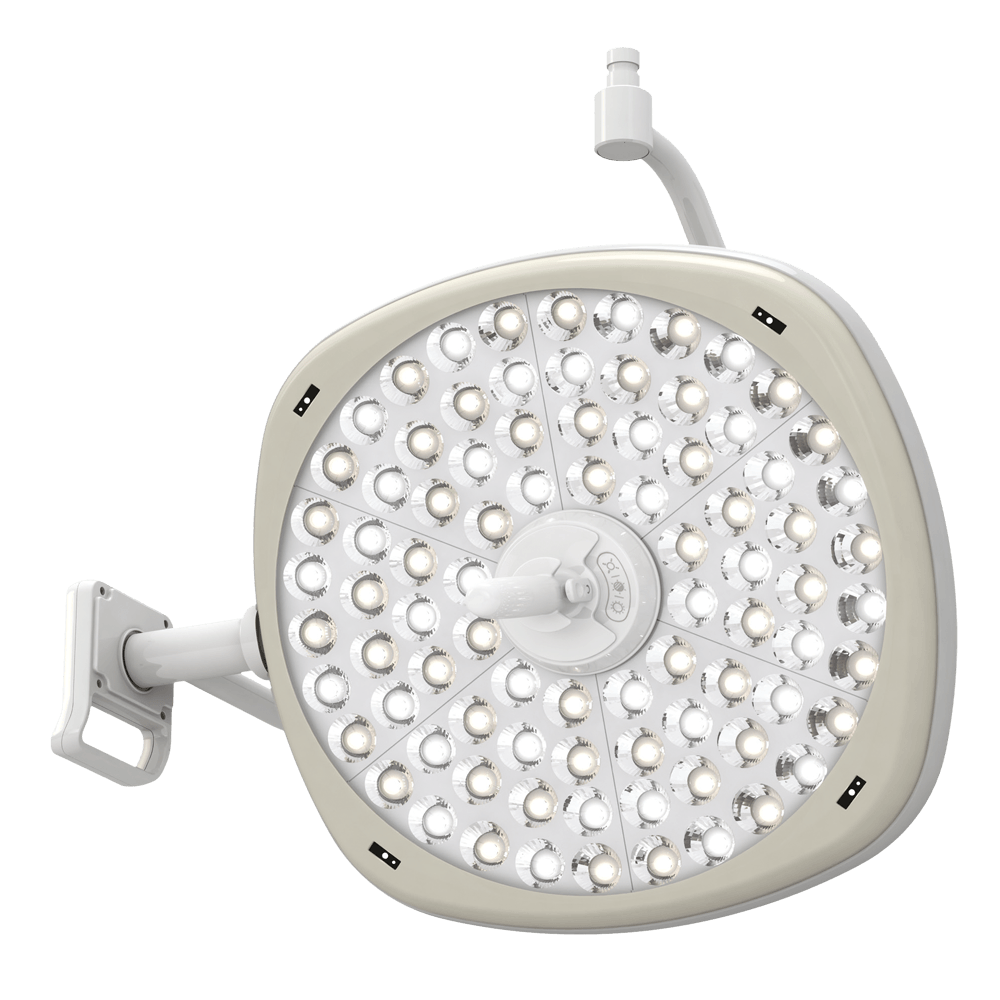

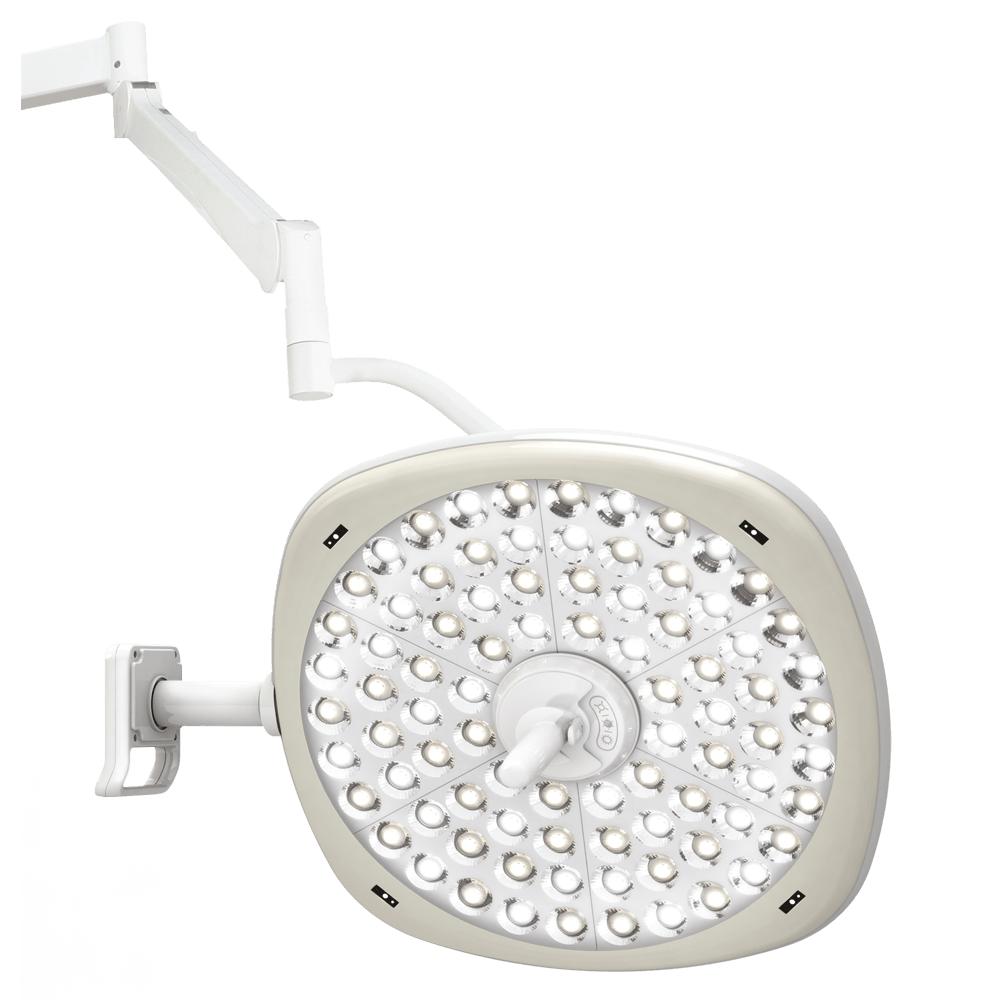

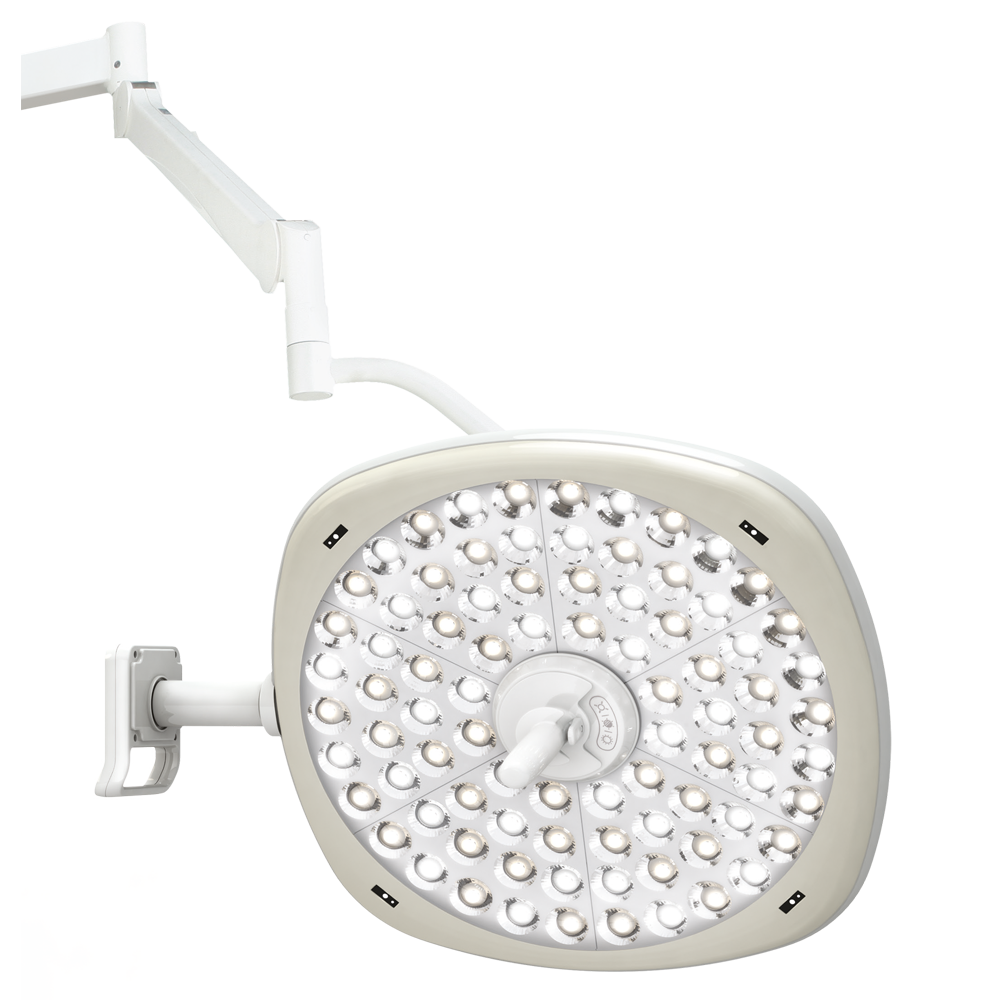

The Luvis-S300 allows users to focus the light field; to adjust the light intensity and color in easy-to-use control panel. It makes the Luvis-S300 the ultimate minor procedure light.
The state of the art of LED Technology Luvis-S300 standard model is equipped with the patent: hybrid optical system and the simplified lighting spot control with removable and autoclavable handle.
• ARM Touch Control (4.3” LCD)
• Handle Touch Control (Quick & Easy)
• 8” Tablet PC (Android APP)
• 3 Step adjustment (Max. 130,000 lx)
• 3 Step adjustment (Max. 25cm / Min. 15cm)
• 3,800K / 4,300K / 4,800K
• Ra 96 / R9 95
• Surgical mode (130,000 lx)
• Examine mode (60,000 lx)
• Dental mode (30,000 lx)
S300
Installation: Ceilling/ Mobile
Head size(cm): 43.5cm
No. of LED(ea): 42
Intensity (LUX): Max 130,000LUX at 1M, Dental: 30,000 Exam: 60,000
Intensity Control: 3steps (40,000LUX ~ 100,000LUX)
C.R.I (Ra/R9): 96 / 95
Color Temp. (K): 3,800/4,300/4,800
Light field size(ø): 3 Steps (15~25, Circle)
Smart sensor: No
Detachable Centre grip: Yes(2X)
LED Life: 60,000Hrs
(option) Built-in Camera: No
(option) Wall controller: Yes (Tablet PC)
(option) Backup battery: Yes
Back-up Battery
• Over Voltage Detection • Cell Balancing. PTC
• Under Voltage Detection • Life cycle: 300 cycle (charge/discharge)
• Discharging Over Current Detection • Duration: 3 Hours
• Short Circuit Detection
Rating: 20~28Vdc. 4A (Lithium-ion Battery)
Dimension: 244×164×120mm
Weight: 3.8kg
